美國NDT JAMES W-P-2000 Windsor Pin混凝土強度檢測儀

美國NDT JAMES W-P-2000 Windsor Pin混凝土強度檢測儀獨有的建筑材料測量儀器。準確及快速地量度混凝土、灰泥、磚的壓縮強度。

美國NDT JAMES W-P-2000 Windsor Pin混凝土強度檢測儀

名稱：	美國NDT JAMES W-P-2000 Windsor Pin混凝土強度檢測儀
	型號：	W-P-2000 Windsor Pin
	廠家：	美國NDT JAMES
	用途：	獨有的建筑材料測量儀器。準確及快速地量度混凝土、灰泥、磚的壓縮強度。

詳細介紹：

產(chǎn)品名稱：混凝土強度檢測儀

型號：W-P-2000

廠家：美國NDT James

美國NDT JAMES W-P-2000 Windsor Pin混凝土強度檢測儀獨有的建筑材料測量儀器。準確及快速地量度混凝土、灰泥、磚的壓縮強度。

Windsor Pin? system

A unique instrument for measuring the strength of new or existing construction materials in situ utilizing the established principle of resistance to penetration.

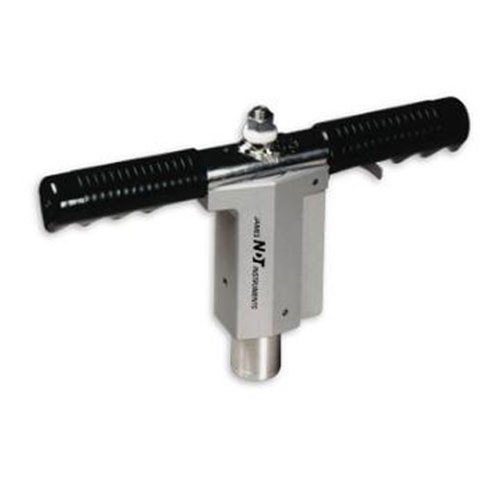

Measures the compressive strength of concrete, mortar and brick in-situ, quickly and accurately. A non-explosive instrument, the Windsor Pin? System uses a spring-loaded device to drive a steel pin into the concrete (or mortar). The depth of penetration of the needle correlates to the compressive strength of the material under test. A removable chuck and a small pin size facilitate the testing of mortar joints; this is the only system for testing the in-place strength of brick mortar joints.

Purchasing Notes:

Consumables: W-P Hardened Steel Pins for Windsor Pin System (sold separately, can be purchased per piece or per case of 40 pins.)

Features & Benefits:

· Portable and completely self-contained.

· Safe to use - non explosive.

· Economical - steel pin can be reused.

· Non destructive.

· Removable chuck facilitates testing of mortar strength in masonry.

· Conforms to ASTM C-803

· Test new concrete products and structures for early strength.

· Evaluate the in situ strength in existing structures, e.g., after suspected fire damage.

· Test strength of block, brick, and mortar joints within an existing structure, e.g., load bearing walls.

· Test polymer concrete and patching compound.

· Quality control of precast elements such as block, brick slabs and pipe.

Calibration
The spring of this instrument has been selected for its ability to undergo many compression cycles with no loss of energy. However, it is recommended that the instrument be sent back to James Instruments (or an authorized distributor) for cleaning, recalibration, and replacement of the brass loading nut, at least once every year.

Specifications

W-P-2000	Windsor Pin? System
W-P-1040	Box of 40 pins with gauge for Windsor Pin? system
Weight	18 lbs.(8.1 Kg)
Dimensions	17 x 12 x 6 inches (43 x 30 x 15 cm)
