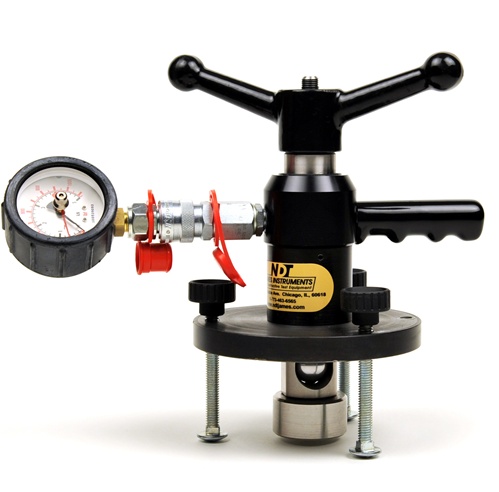

The James Bond Tester? MK III or pull off adhesion test measures
the bond strength or tensile strength of concrete, asphalt, tile, concrete
repair, or other overlay material by the direct tension or pull off method. By
pulling a 25mm steel disk attached to the material under the unit can,
-
Measure the near surface strength of a substrate in order to determine the
substrates quality before applying an overlay
-
Determine the bond strength of a repair or overlay material after it is
applied to the substrate
-
Determine the tensile strength of a repair, overlay or adhesive after the
material is applied to the surface
The James Bond Tester? MK III has been successfully used to
verify the quality of existing materials, determine the adhesion strength of
shotcrete, tile, epoxies, paint and other repair materials or coatings.
-
Each System comes with 10, 50mm 2 inch, ASTM Standard 1583 - 04 stainless
steel disks
-
Customers who purchase this may also need the T-M-170 Moisture Master or T-HT-1000 Humitest for substrate moisture testing
Features and Benefits
· Accurate bond strength of repair mortars, epoxy resins,
laminates, overlays, and other coatings.
· Calibrated gauge with maximum load indicator and mechanical
damping.
· Ball Joint Design for rapid testing as well as assuring direct
tensile loading
· Adjustable alignment plate with built in leveling facility for
both vertical and horizontal pulls.
· Compact design.
· Easy to use.
· Standards
o ISO 4624 Paints and varnishes -- Pull-off test for
adhesion
o EN 1015-12 Methods of test for mortar for masonry. Determination of
adhesive strength of hardened rendering and plastering mortars on
substrate
o EN 1348 Determination of Tensile Adhesion Strength for Cementitious
Adhesives
o BS 1881 Part 207 Testing concrete. Recommendations for the
assessment of concrete strength by near-to-surface tests
o ASTM C 1583 Standard Test Method for Tensile Strength of Concrete
Surfaces and the Bond Strength or Tensile Strength of Concrete Repair and
Overlay Materials by Direct Tension (Pull-off Method)
o ASTM D 4541 Standard Test Method for Pull-Off Strength of Coatings
Using Portable Adhesion Testers
o ACI 503-30 Guide for the Application of Epoxy and Latex Adhesives
for Bonding Freshly Mixed and Hardened Concretes
o DIN 1048 Part 2 Testing concrete; testing of hardened concrete
(specimens taken in situ)
|
Gauge Specifications
|
|
Range
|
Increments
|
Maximum Load Indicator
|
Mechanical Dampened Movement
|
Diameter
|
|
0
- 5 KN / 0 - 1100 lbf
|
0.2 KN / 50 lbf
|
Yes
|
Yes
|
70 mm / 2.5"
|
|
0
- 20 KN / 0 - 4450 lbf
|
1.0 KN / 200 lbf
|
Yes
|
Yes
|
70 mm / 2.5"
|
|
Alignment
Plate
|
|
Diameter
|
Horizontal and Vertical Level
|
Easy Thumb Screw Adjustment Knobs
|
|
150 mm / 6"
|
Yes
|
Yes
|
|
Bond Test Puller Assembly
|
|
Diameter
|
Height
|
Maximum Load
|
|
60 mm / 2.5"
|
210mm / 8.125"
|
30 KN / 6675 lbf
|
|
Bond Test Assembly (Alignment Plate Attached to Bond Test
Puller Assembly)
|
|
Height
|
Width
|
Weight
|
|
240 mm / 9.375"
|
3010 mm / 12.5"
|
5 Kg / 11 lbs.
|
|
James Bond Tester? MK III in Case
|
|
Height
|
Width
|
Depth
|
Weight
|
|
410mm / 16"
|
508mm / 20"
|
205mm / 8"
|
14 Kg / 31 lbs
|
